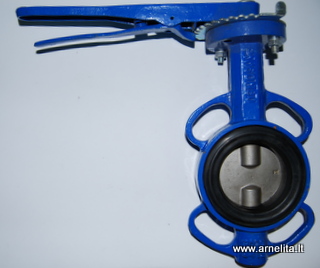

Butterfly valve AISI316 disc DN 150
Wafer type G2103; GG-20 iron body,
Allows instalation in ANSI 150 and DIN PN10/16 pipe flange.
EPDM body seat, butterfly made in AISI316
Actuator mounting plate according ISO 5211.
DIN epoxi painted.
MAX working temperature – 100 C; pressure PN 16
